The MLC3300 is a single chip of ultra low power multi format digital audio decoder with additional CDROM decoder. It also offers more variety of flexibility and very high performance to user's application. This product employs new cutting-edge and high performance RISC-DSP CPU core, very efficient and flexible firmware and multiplex peripherals. The embedded RISC-DSP core and advanced architecture provide most efficient performance for decoding multi format digital audio files and controllability for Compact disc player system. The MLC3300 is fabricated with advanced CMOS technology and designed for consuming innovative ultra low power. The MLC3300 decodes MPEG layer2 and layer3 formats and WMA (Windows media audio) format including ASF (Advanced Systems Format) files. The MLC3300 is also designed to be able to employ many kinds of Non-Volatile memory as external program memory and SDRAM as external data memory. The external Non-Volatile memory can be used as not only upgradeable program memory area but also users' data storage. Also the external SDRAM can be used as the flexible memory buffer for MPEG / WMA bit stream, compressed audio data and temporary data of the host controller. The MLC3300 supports two ways for handshaking with host system controller in both parallel and serial communication. The programmable-DAC-controller-configuration and auto-sampling-rate-conversion functionalities can be communicated with any general DAC and dedicated Red Book audio DAC.








- Supply voltage: 2.5V ± 10%, I/O supply power: 3.3V ± 10%

- Ultra low power consumption: 65mW ± 10%

- Flexible crystal frequencies of 16.9344Mhz and 33.8688Mhz

-100 TQFP


  • Single-chip MPEG 1/2 layer 2 and 3 decoder with CDROM decoder
  • Windows Media Audio (WMA) decoding regardless bit rate
  • Audio decoding of Window Media Video (WMV)
  • Supports ASF (Advanced Systems Format) decoding
  • Support ID3 tag V1 and V2 extraction.
  • Extension to MPEG 2 / layer 2 and 3 for low bit rates (MPEG 2.5 - LSF)
  • Bit stream with variable bit rates (bit rate switching) are supported.
  • Full MPEG bit rates including free format
  • Full bit rates WMA file Decoding
  • Supports Software MUTE / Pause / Resume
  • Supports ISO9660 CDROM Mode1/Mode2 format (CDROM-XA)
  • Supports Joliet decoding both single-session and multi-session disc
  • Supports Joliet Level 3 decoding as call UDF Bridge
  • Supports UDF (Universal Disk Format) decoding in Packet writing format CD-RW disc and in Non-packet
  • riting CD-R disc.
  • Support the sorting directories and files in name order.
  • Support the playing list file as like xxx.pls and xxx.m3u
  • High quality voice recoding
  • CD-TEXT format decoding in Lead-in area.
  • Digital volume control
  • 7-band sound Equalizer for MP3, WMA and Red book audio CD
  • 7 band graphic Equalizer for MP3, WMA and Red book audio CD
  • MEBB (MCS Logic Enhanced Bass band) sound algorithm
  • Optional sampling rate conversion to 44.1Khz for off-chip general audio DAC
  • Channel mixing or separating for two different audio sources
  • Improved high quality sound at high compression rate of ESP
  • Supports time display (Normal / FF / FB)
  • Dynamic classification of memory area cluster




Serial Host Controller interface / Parallel Host Controller Interface
Audio PCM output delivered via I2S bus

Connection to external memory
SDRAM from 16M bits to 256M bits with 16 bits data bus
Programmable access time control
Connection to external program memory
Flash (NOR type), EPROM and Mask ROM up to 16M bits with 8 bits data bus
2-wire I2C serial EEPROM
Host controller direct access to NOR-Flash, EPROM, Mask ROM

Compatible with various format of CDROM (Mode 1, Mode 2/Form 1 and Mode 2/Form 2)
Supports Fast CDROM decoding up to 4X
Real-Time One Error Correction and Detection for CDROM

Additional functionality achievable by downloading supplied firmware
Video CD mode (Play MPEG audio data from VCD)

Audio CD mode
1) Audio bypass mode.
2) Anti-shock proof on audio CD mode:

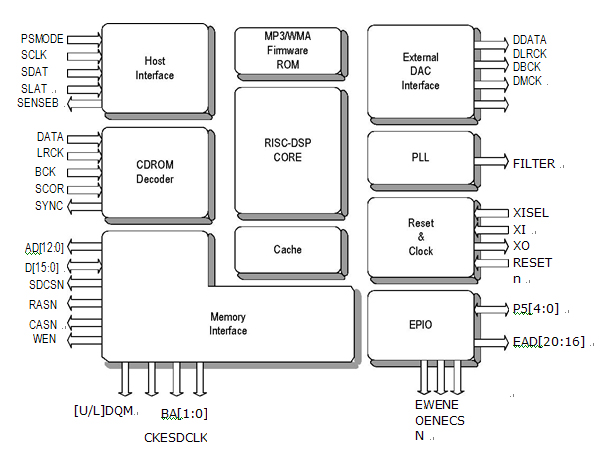

[Fig 1] Host Controller Serial Interface Note: The PSMODE pin has to be stuck to IOVDD for this serial interface mode

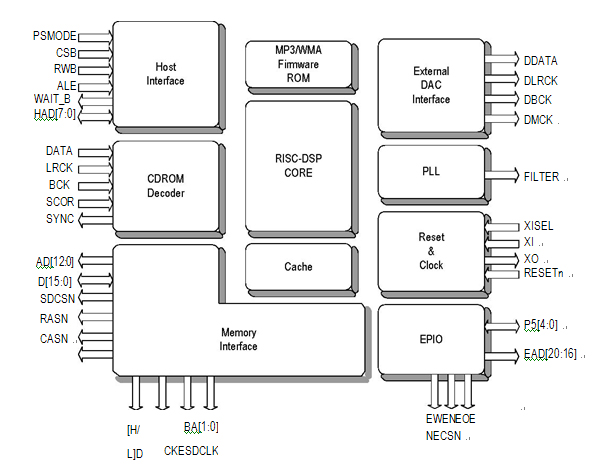

[Fig 2] Host Controller Parallel Interface

Note: The PSMODE pin has to be stuck to IOVSS for this parallel interface mode. Additional port (HAD[7:0] ) in the Host Controller Interface module on upper-left of the block diagram can carry parallel data, compared to the SENSEB port in the serial interface diagram [Fig1] on previous page.
